Cab Interior
Sears seating configurations, seat materials, safety belts, door panels, overhead console, storage, insulation, trim, flooring, HVAC system, dash panel, and center console.
Configurator Cross-Reference – Red italic text indicates the topic location(s) in the Configurator.
Available on all Sears seats. Asphalt Confetti colored tri-laminate material. Fabriform process eliminates fabric seams. Superior wear resistance, wicking action to disperse moisture, easily cleanable.
Available on all Sears seats. Black heavy duty vinyl material. Fabriform process eliminates fabric seams. Excellent wear resistance, easily cleanable.
Mid-high back seat, 20" wide ergonomic contoured Fabriform cushions. 6" fore/aft adjustment, 15° forward and 12.5° recline seat back adjustment, fixed lumbar, non-suspension. Available in LH or RH position on standard and extended cabs. All seat materials.
Mid-high back seat, 20" wide. 6" fore/aft, 15° forward and 12.5° recline, fixed lumbar, air-suspended 4.25" vertical adjustment. Air valve at front of seat base. LH or RH on standard and extended cabs.

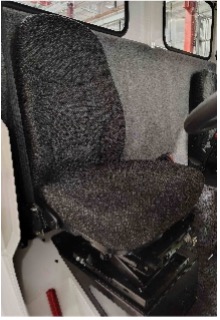

Mid-high back seat, 20" wide. 6" fore/aft, 15° forward and 12.5° recline, adjustable mechanical lumbar, air-suspended 4.25" vertical adjustment. LH or RH on standard and extended cabs.
Mid-high back seat with Battle logo headrest, 20" wide. 6" fore/aft, 15° forward and 12.5° recline, adjustable mechanical lumbar, dual shock air-suspended 4.25" vertical adjustment, molded boot surrounds seat base. LH or RH on standard and extended cabs.

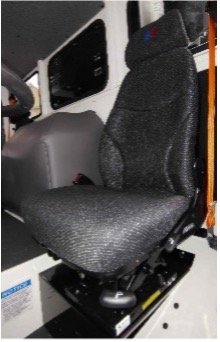

Mid-high back seat, 20.5" wide extra thick contoured cushions, 9" fore/aft, reclining seat back, air adjustable lumbar, bottom cushion integrated tilt and extension, air-suspended 6" vertical adjustment. Air valves front and side. Suspension skirt. LH or RH on standard and extended cabs.

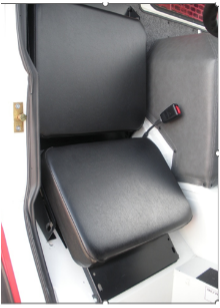

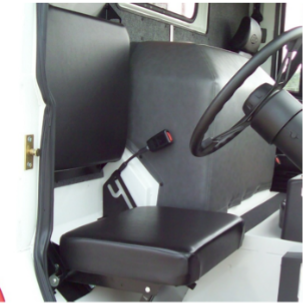

Adjustable 6-position back rest and 3-position seat bottom cushion. Bottom cushion folds up or down for standing-position vehicle operation. Not recommended for primary driving position.

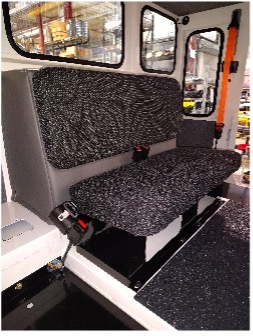

2-person, fixed bench seat. Located in center of vehicle in front of doghouse. Only available with 2-point seat belts.
Adds in-board armrest to Sears C2 seat selection. Available for LH or RH position (or both).
Adds in-board armrest to Sears Sentry seat selection. Available for LH or RH position (or both).
Adjustable seat shock for Sears Sentry seat.
2" wide black polyester webbing with retractors. 3-point belts on all cab style outboard occupant positions. 2-point belts on extended cab bench seating positions.
2" wide black polyester webbing with retractors and Komfort Latch. Only available on outboard positions with air-suspended seat.
2" wide safety orange polyester webbing with retractors. 3-point on outboard positions, 2-point on bench seating.
Safety orange with Komfort Latch. Only on outboard positions with air-suspended seat.
2" wide polyester webbing, retractable safety orange safety belt across door opening. Standard on any door opening with bi-fold or flip-up/fold-back style door.
Electric regulator with push/pull cable. Switches on dash panel. Various switch options depending on drive position/application.
16 ga steel, storm gray powder coat paint. Separate padded pull handle/armrest with heavy duty black vinyl covering, cargo net.
3/16" thick black ABS molded door panel, haircell texture. Integrated pull cup, arm rest, and cargo net.
6" wide black nylon webbing, 16K lbs. tensile strength. Limits door opening angle on solid style doors.
Flat tempered safety glass, green tint, 70% light transmission.
Flat tempered safety glass, green tint, 70% light transmission. 9.5" × 24.38" lower view window in all styles of doors.
Chrome exterior and interior door handles with integrated locks. Handle style varies with door type.
2 keys operate door locks and ignition.
6 keys operate door locks and ignition.
Galvanneal steel, powder coat painted storm gray. Full cab width. Provides mounting locations for sun visors, cab fans, radio, radio speakers, HVAC control head, and dome/map lights.
2 document/clipboard storage compartments (one per side of cab), ~900 cu in storage volume, 13.75" × 2.25" opening.
31" long × 6" wide, gray vinyl covering with document strap, detent in stored position.
Roof: 1.25" closed cell NBR/PVC foam. Back wall: 1.50" open cell ether foam with 1.5 mil polyurethane top film. Center floor and doghouse: foam barrier composite (1/4" foam + 1/8" barrier + 3/4" foam layers with aluminized top face).
1-piece carpeted face with headboard backing, Foss grey color, secured with push-in panel fasteners.
1-piece carpet with 1/4" open cell ether foam, grey color.
3/8" thick, gray vinyl with laminated foam (10mm). Secured with 1" Velcro hook/loop fastening system.
1" diameter steel tubing, 12" useful length (6.25" for bi-fold doors), black textured powder coat, 1 per side, on A-pillar interior surface.
18 ga steel, Storm Gray powder coat finish. Standard on LH steering column in LH drive and Dual drive layouts.
18 ga, steel, Storm Gray powder coat finish, optional on RH steering column in RH drive and Dual drive layouts.
High friction textured sheet with pressure sensitive adhesive backing, applied to walking surfaces, black in color.
Perforated and embossed top surface panel affixed to first step. Provides traction for ingress/egress; aids in displacing moisture and dirt. 14 ga G-90 galvalume coated steel, finish painted flat black. Available LH, RH, or both on solid standard doors.
Same as floor grating but with additional boot scraper feature. Available LH, RH, or both on solid standard doors.
Axial fan mounted under overhead console toward center of vehicle. Die cast base, adjustable tension mount, 2-speed motor, fan speed toggle switch integrated into base. Standard: dual fans. Optional: single fan (LH or RH).
34,000 BTU heat / 18,400 BTU cooling, 483 CFM, electric controlled mode door and water valve. Integrated into cab dash. Recirculated air filter. Features:
- 4 — 4" round fully closeable panel louvers
- 2 — 1.50" × 10" defrost grilles
- 4 air outlets in lower portion of dash for floor airflow distribution
- Control head: 3 rotary knobs (fan, temperature, mode) + "A/C On" rocker switch
- Sanden SD7H15 compressor, pad mounted on engine
- 281 in² condenser integrated into engine cooling package
34,000 BTU heat, 483 CFM, electric controlled mode door and water valve. Same features as standard HVAC but without A/C. Control head has three rotary knobs (fan, temperature, mode).
Self-contained A/C unit: condenser, compressor, and evaporator in single roof-top unit. 11,900 BTU cooling, 299 CFM. Single overhead plenum with louvers, recirculation air filter, blower/temperature controls.
16 ga steel, powder coat painted Storm Gray. Configurable to all driving positions and cab styles. Extends full width of cab interior. Easy-to-remove panels for mounting body controls by upfitter.
16 ga steel, Storm Gray. Extends across left 3/4 of cab. Allows easier ingress/egress to RH seat. Includes additional interior grab handle near windshield on RH side.
Flat center panel under dash with cargo net storage. LH and RH single cup/mug holder extensions rearward from dash. Standard if no center console option requested.
10.25" tall × 38" wide base extending 20" rearward. Dual cup/mug holders in center raised section. Configurable panels on raised section sides and top. Easy-to-remove, configurable panels for body controls. Contact dealer for current configuration options.
Air chuck mounted in LH seat base, Type C quick disconnect coupling.
